FT231XS, FT231X Datasheet - FTDI

FT231XS, FT231X, USB TO FULL HANDSHAKE UART

FT231X USB TO FULL HANDSHAKE UART IC Datasheet Version 1.4 Document No.: FT_000565 Clearance No.: FTDI# 261 Future Technology Devices International L.

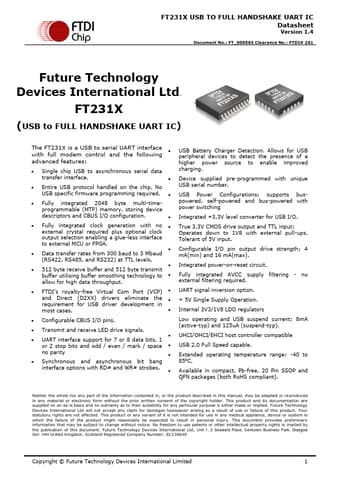

datasheet Preview Page 1 from Datasheet4u.com

FT231X_FTDI.pdf

FT231XS Datasheet Preview — This datasheet PDF includes multiple part numbers: FT231XS, FT231X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FT231XS, FT231X

Manufacturer:

FTDI

File Size:

1.05 MB

Description:

USB TO FULL HANDSHAKE UART

Note:

This datasheet PDF includes multiple part numbers: FT231XS, FT231X.
Please refer to the document for exact specifications by model.

Features

* Single chip USB to asynchronous serial data transfer interface.
* Entire USB protocol handled on the chip. No USB specific firmware programming required.
* Fully integrated 2048 byte multi-time- programmable (MTP) memory, storing device descriptors and CBUS I/O conf

Applications

* Document No. : FT_000565 Clearance No. : FTDI# 261
* USB to RS232/RS422/RS485 Converters
* Upgrading Legacy Peripherals to USB
* Utilising USB to add system modularity
* Incorporate USB interface to enable PC transfers for development system communication
* Cellular and Cordless
