FT600Q - USB 3.0 to FIFO Bridge

Product Overview

FTDI

📥 Download Datasheet

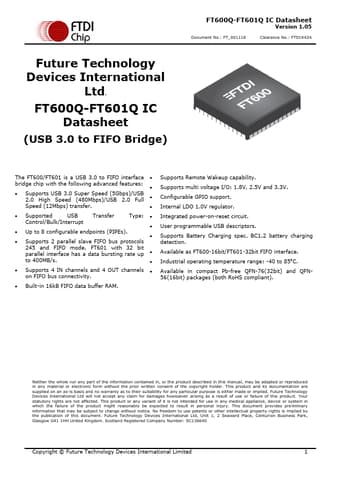

FT600Q USB 3.0 to FIFO Bridge by FTDI - Datasheet Preview — Datasheet preview – FT600Q

Datasheet Details

Part number	FT600Q
Manufacturer	FTDI
File Size	1.59 MB
Description	USB 3.0 to FIFO Bridge
Datasheet	FT600Q Datasheet
Additional preview pages of the FT600Q datasheet.

Product details

Features

Supports USB 3.0 Super Speed (5Gbps)/USB 2.0 High Speed (480Mbps)/USB 2.0 Full Speed (12Mbps) transfer.
Supported USB Transfer Type:.
Control/Bulk/Interrupt.
Up to 8 configurable endpoints (PIPEs).
Supports 2 parallel slave FIFO bus protocols 245 and FIFO mode, FT601 with 32 bit parallel interface has a data bursting rate up.
to 400MB/s.
Supports 4 IN channels and 4 OUT channels.
on FIFO bus conn.
