FT601Q - USB 3.0 to FIFO Bridge

Product Overview

FTDI

📥 Download Datasheet

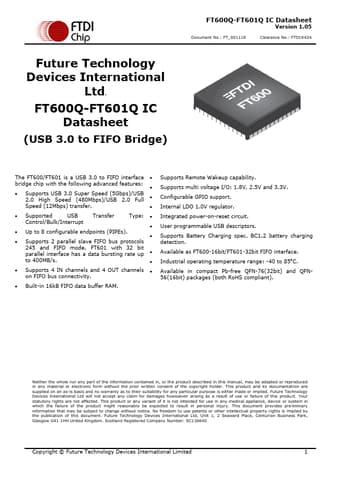

FT601Q USB 3.0 to FIFO Bridge by FTDI - Datasheet Preview — Datasheet preview – FT601Q

Datasheet Details

Part number	FT601Q
Manufacturer	FTDI
File Size	1.59 MB
Description	USB 3.0 to FIFO Bridge
Datasheet	FT601Q Datasheet
Note	This datasheet PDF includes multiple part numbers: FT601Q, FT600Q. Please refer to the document for exact specifications by model.
Additional preview pages of the FT601Q datasheet.

Product details

Features

Supports USB 3.0 Super Speed (5Gbps)/USB 2.0 High Speed (480Mbps)/USB 2.0 Full Speed (12Mbps) transfer.
Supported USB Transfer Type:.
Control/Bulk/Interrupt.
Up to 8 configurable endpoints (PIPEs).
Supports 2 parallel slave FIFO bus protocols 245 and FIFO mode, FT601 with 32 bit parallel interface has a data bursting rate up.
to 400MB/s.
Supports 4 IN channels and 4 OUT channels.
on FIFO bus conn.
