1N3595 Datasheet - Fairchild Semiconductor

1N3595 - Small Signal Diode Absolute Maximum Ratings

1N3595 1N3595 DO-35 Color Band Denotes Cathode Small Signal Diode Absolute Maximum Ratings Symbol VRRM IF(AV) IFSM TA = 25°C unless otherwise noted Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current Pulse Width = 1.0 second Pulse Width = 1.0 microsecond Storage Temperature Range Operating Junction Temperature Value 150 200 1.0 4.0 -65 to +200 175 Units V mA A A °C °C Tstg TJ These ratings are limiting values

1N3595_FairchildSemiconductor.pdf

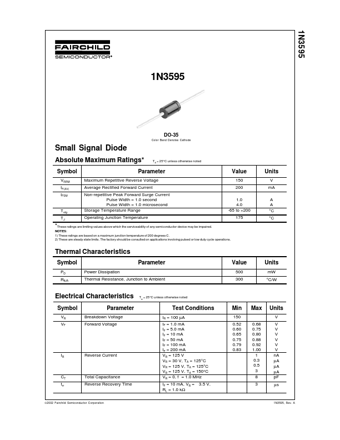

Preview of 1N3595 PDF
1N3595 Datasheet Preview Page 2

Datasheet Details

Part number:

1N3595

Manufacturer:

Fairchild Semiconductor

File Size:

34.96 KB

Description:

Small signal diode absolute maximum ratings.
