1N3507A, 1N3506A Datasheet - Microsemi

1N3507A ZENER VOLTAGE REGULATOR DIODE

6 Lake Street, Lawrence, MA 01844 1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803 Website: http: //www.microsemi.com TECHNICAL DATA SHEET 400mW ZENER VOLTAGE REGULATOR DIODE DEVICES 1N3506A through 1N3534A MAXIMUM RATING AT 25oC Junction and Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ TEC = +125°C Forward Voltage @ 200mA: 1.1 volts maximum ELECTRICAL CHARACTERISTICS (TA = 25°C, unless otherwise specified) Zener Type # 1N3506A 1N3507A 1N3508A 1N3509A Zener Vol.

1N3506A-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 1N3507A, 1N3506A. Please refer to the document for exact specifications by model.

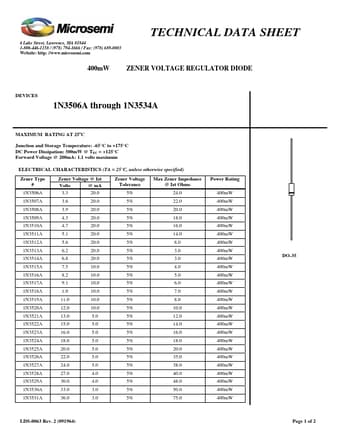

1N3507A Datasheet Preview Page 2

Datasheet Details

Part number:

1N3507A, 1N3506A

Manufacturer:

Microsemi ↗

File Size:

112.83 KB

Description:

Zener voltage regulator diode.

Note:

This datasheet PDF includes multiple part numbers: 1N3507A, 1N3506A.
Please refer to the document for exact specifications by model.
