1N3509A ZENER VOLTAGE REGULATOR DIODE

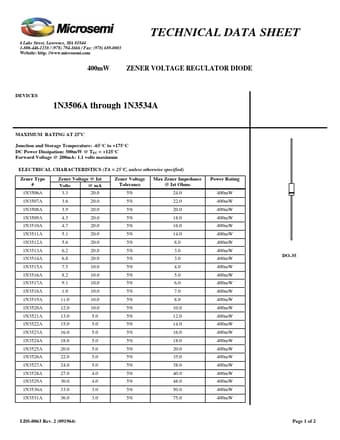

6 Lake Street, Lawrence, MA 01844 1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803 Website: http: //www.microsemi.com TECHNICAL DATA SHEET 400mW ZENER VOLTAGE REGULATOR DIODE DEVICES 1N3506A through 1N3534A MAXIMUM RATING AT 25oC Junction and Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ TEC = +125°C Forward Voltage @ 200mA: 1.1 volts maximum ELECTRICAL CHARACTERISTICS (TA = 25°C, unless otherwise specified) Zener Type # 1N3506A 1N3507A 1N3508A 1N3509A Zener Vol.
