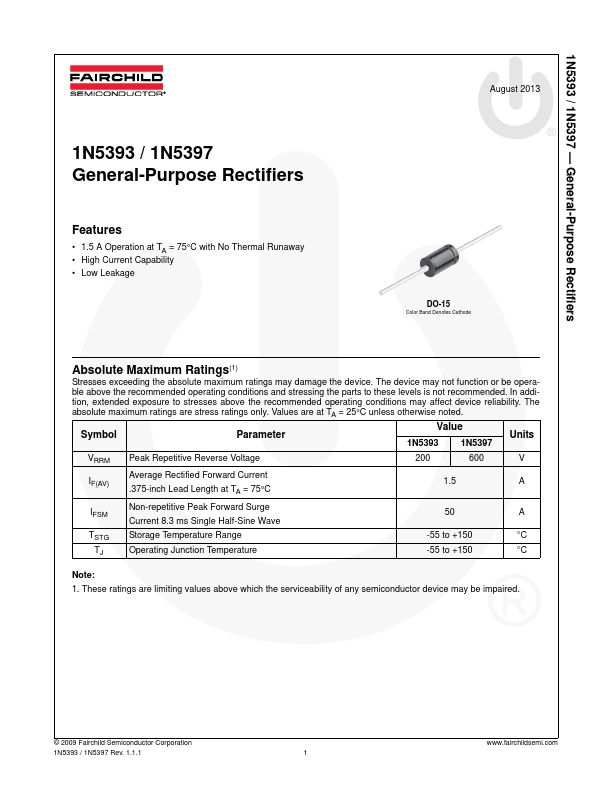

1N5393 General-Purpose Rectifiers

Fairchild Semiconductor

Description

1N5393 / 1N5397 * General-Purpose Rectifiers August 2013 1N5393 / 1N5397 General-Purpose Rectifiers .

📥 Download Datasheet

1N5393 Datasheet Preview — Preview of 1N5393 PDF

Datasheet Specifications

Part number: 1N5393
Manufacturer: Fairchild Semiconductor
File Size: 136.66 KB
Datasheet: 1N5393-FairchildSemiconductor.pdf
Description: General-Purpose Rectifiers

Features

* 1.5 A Operation at TA = 75°C with No Thermal Runaway
* High Current Capability
* Low Leakage DO-15 Color Band Denotes Cathode Absolute Maximum Ratings(1) Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera- ble
