1N5397, 1N5393 - General-Purpose Rectifiers

1N5397 Description

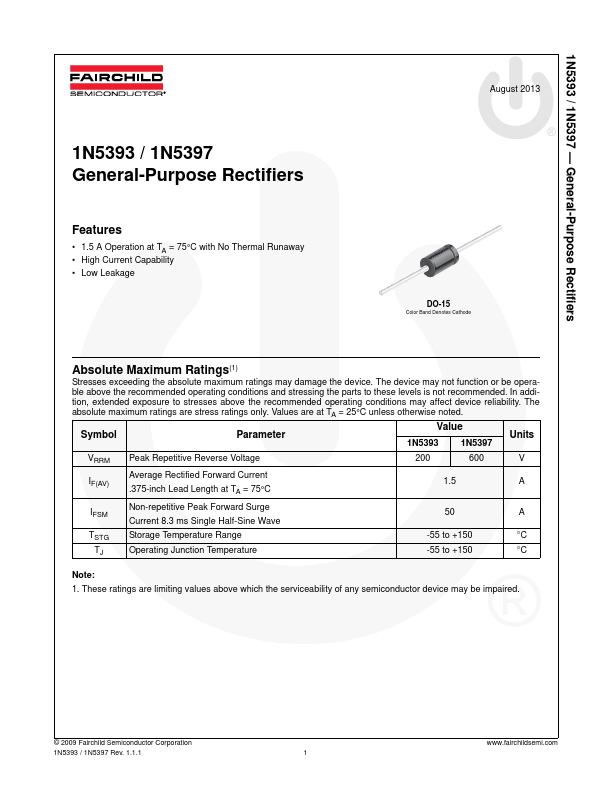

1N5393 / 1N5397 * General-Purpose Rectifiers August 2013 1N5393 / 1N5397 General-Purpose Rectifiers .

1N5397 Features

* 1.5 A Operation at TA = 75°C with No Thermal Runaway
* High Current Capability
* Low Leakage DO-15 Color Band Denotes Cathode Absolute Maximum Ratings(1) Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera- ble

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5397, 1N5393. Please refer to the document for exact specifications by model.

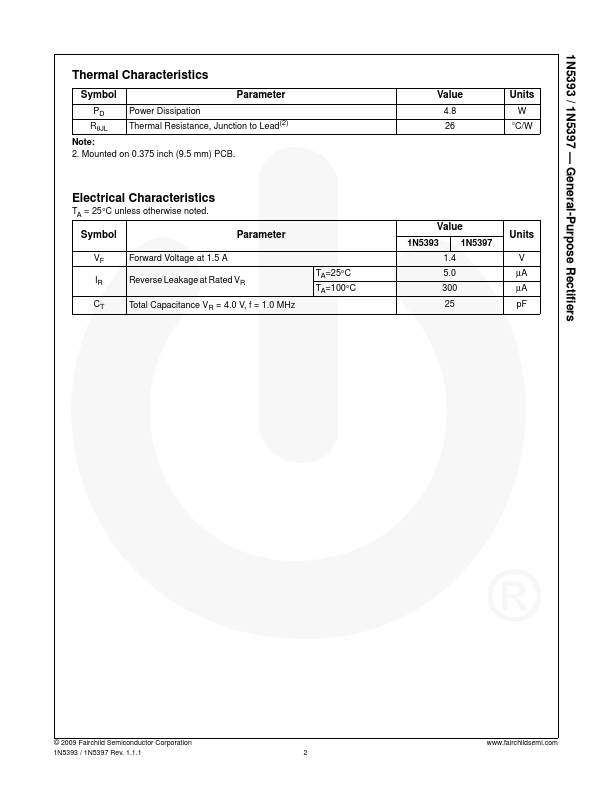

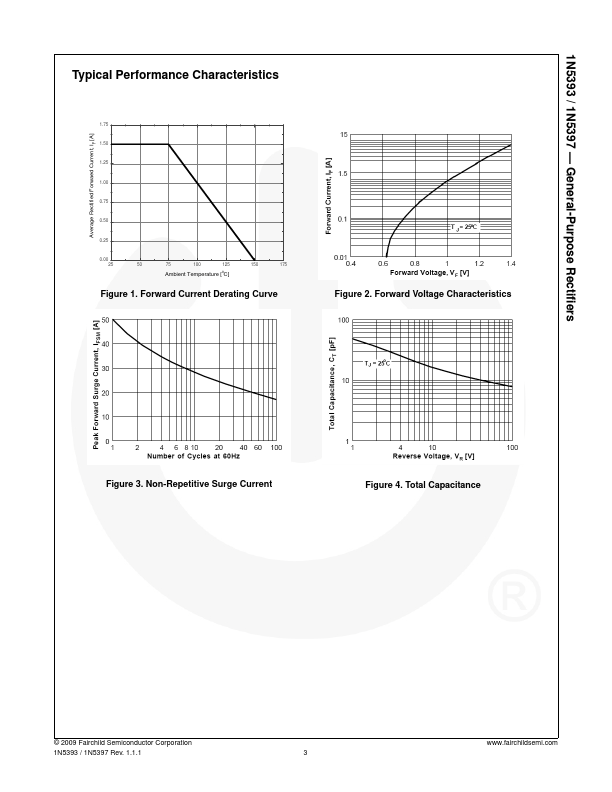

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5397, 1N5393
Manufacturer
Fairchild Semiconductor
File Size
136.66 KB
Datasheet
1N5393-FairchildSemiconductor.pdf
Description
General-Purpose Rectifiers
Note
This datasheet PDF includes multiple part numbers: 1N5397, 1N5393.
Please refer to the document for exact specifications by model.
