1N6009B Zener Diodes

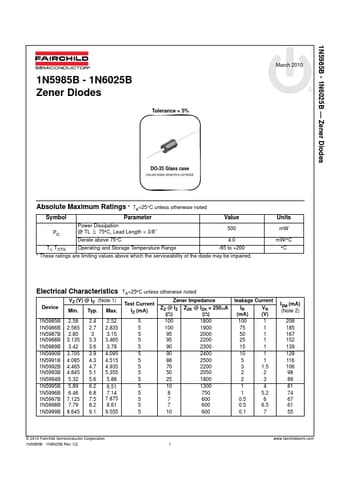

1N5985B - 1N6025B Zener Diodes 1N5985B - 1N6025B Zener Diodes Tolerance = 5% March 2010 DO-35 Glass case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings TA=25°C unless otherwise noted Symbol Parameter Value Power Dissipation PD @ TL ≤ 75°C, Lead Length = 3/8” Derate above 75°C 500 4.0 TJ, TSTG Operating and Storage Temperature Range -65 to +200 These ratings are limiting values above which the serviceability of the diode may be impaired. Units mW mW/°C °C .
