2N3415 NPN General Purpose Amplifier

2N3415 Description

2N3415 Discrete POWER & Signal Technologies 2N3415 E CB TO-92 NPN General Purpose Amplifier This device is designed for use as general purpose a.

2N3415 Applications

* involving pulsed or low duty cycle operations. Thermal Characteristics Symbol PD RθJC RθJA TA = 25°C unless otherwise noted Characteristic Total Device Dissipation Derate above 25° C Thermal Resistance, Junction to Case Thermal Resistance, Junction to Ambient Max 2N3415 625 5.0 83.3 200 Units m

📥 Download Datasheet

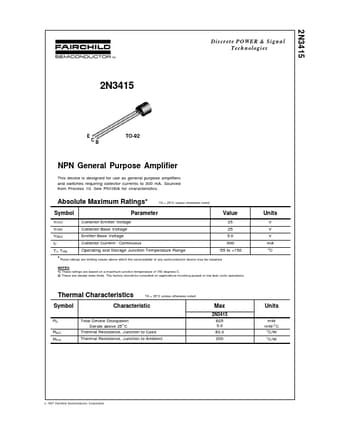

Preview of 2N3415 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N3415
Manufacturer
Fairchild Semiconductor
File Size
22.70 KB
Datasheet
2N3415_FairchildSemiconductor.pdf
Description
NPN General Purpose Amplifier
