2N3418 - NPN MEDIUM POWER SILICON TRANSISTOR

Microsemi Corporation

The 2N3418 by Microsemi Corporation is a NPN MEDIUM POWER SILICON TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

2N3418 NPN MEDIUM POWER SILICON TRANSISTOR by Microsemi Corporation - Datasheet Preview — Official preview page of the 2N3418 NPN MEDIUM POWER SILICON TRANSISTOR datasheet (Microsemi Corporation).

Datasheet Details

Part number	2N3418
Manufacturer	Microsemi Corporation
File Size	242.02 KB
Description	NPN MEDIUM POWER SILICON TRANSISTOR
Datasheet	2N3418_MicrosemiCorporation.pdf

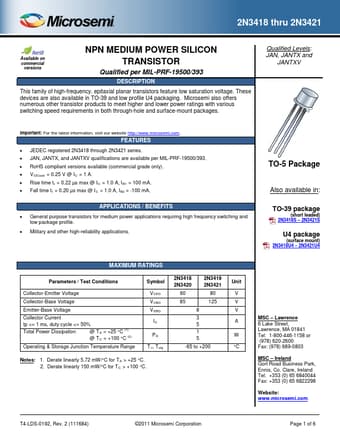

Additional preview pages of the 2N3418 datasheet.

2N3418 Product details

Description

This family of high-frequency, epitaxial planar transistors feature low saturation voltage.

Features

JEDEC registered 2N3418 through 2N3421 series.
JAN, JANTX, and JANTXV qualifications are available per MIL-PRF-19500/393.
RoHS compliant versions available (commercial grade only).
VCE(sat) = 0.25 V @ IC = 1 A.
Rise time tr = 0.22 µs max @ IC = 1.0 A, IB1 = 100 mA.
Fall time tf = 0.20 µs max @ IC = 1.0 A, IB2 = -100 mA.
