2N3421 - NPN MEDIUM POWER SILICON TRANSISTOR

Product Overview

Microsemi Corporation

📥 Download Datasheet

2N3421 NPN MEDIUM POWER SILICON TRANSISTOR by Microsemi Corporation - Datasheet Preview — Datasheet preview – 2N3421

Datasheet Details

Part number	2N3421
Manufacturer	Microsemi Corporation
File Size	234.99 KB
Description	NPN MEDIUM POWER SILICON TRANSISTOR
Datasheet	2N3421 Datasheet

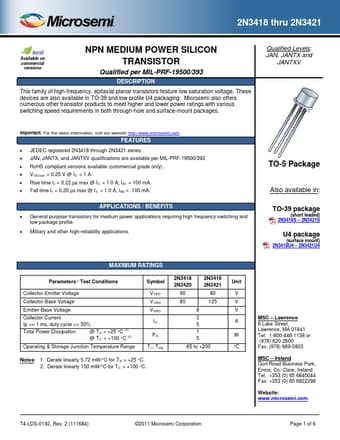

Additional preview pages of the 2N3421 datasheet.

Product details

Description

This family of high-frequency, epitaxial planar transistors feature low saturation voltage.

Features

JEDEC registered 2N3418 through 2N3421 series.
JAN, JANTX, and JANTXV qualifications are available per MIL-PRF-19500/393.
RoHS compliant versions available (commercial grade only).
VCE(sat) = 0.25 V @ IC = 1 A.
Rise time tr = 0.22 µs max @ IC = 1.0 A, IB1 = 100 mA.
Fall time tf = 0.20 µs max @ IC = 1.0 A, IB2 = -100 mA.
