2N3425 Datasheet - Motorola

2N3425 DUAL AMPLIFIER TRANSISTOR

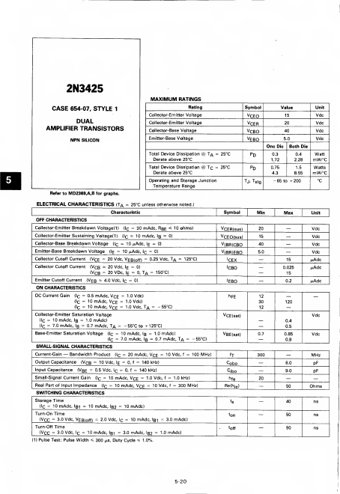

2N3425 CASE 654-07, STYLE 1 DUAL AMPLIFIER TRANSISTORS NPN SILICON Refer to MD2369,A,B for graphs. MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage @Total Device Dissipation TA = 25°C Derate above 25°C @Total Device Dissipation Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol Value Unit VCEO VCER VCBO Vebo 15 20 40 5.0 One Die Both Die Vdc Vdc Vdc Vdc Pd 0.3 0.4 Watt 1.72 2.28 mW/°.

2N3425 Datasheet (32.96 KB)

2N3425 Datasheet Preview — Preview of 2N3425 PDF

Datasheet Details

Part number:

2N3425

Manufacturer:

Motorola

File Size:

32.96 KB

Description:

Dual amplifier transistor.
