Part number: 5090MTC
Manufacturer: Fairchild Semiconductor
File Size: 211.35KB
Download: 📄 Datasheet
Description: FAN5090MTC
* Programmable output from 1.10V to 1.85V in 25mV steps using an integrated 5-bit DAC
* Two interleaved synchronous phases for maximum performance
* 100nsec t.
Features
* Programmable output from 1.10V to 1.85V in 25mV steps using an integrated 5-bit DAC
* Two interleaved.

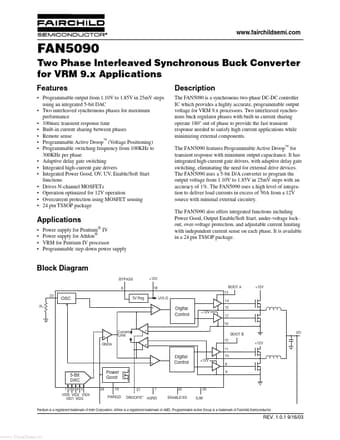

The FAN5090 is a synchronous two-phase DC-DC controller IC which provides a highly accurate, programmable output voltage for VRM 9.x processors. Two interleaved synchronous buck regulator phases with built-in current sharing operate 180° out of phase.
