5093MTC - FAN5093MTC

Fairchild Semiconductor

The 5093MTC by Fairchild Semiconductor is a FAN5093MTC. Below is the official datasheet preview.

Datasheet Details

Part number	5093MTC
Manufacturer	Fairchild Semiconductor
File Size	608.09 KB
Description	FAN5093MTC
Datasheet	5093MTC_FairchildSemiconductor.pdf

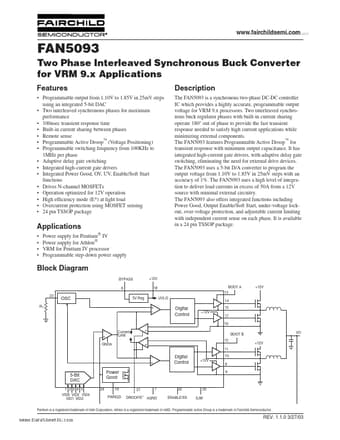

Additional preview pages of the 5093MTC datasheet.

The FAN5093 is a synchronous two-phase DC-DC controller IC which provides a highly accurate, programmable output voltage for VRM 9.x processors.

Programmable output from 1.10V to 1.85V in 25mV steps using an integrated 5-bit DAC.
Two interleaved synchronous phases for maximum performance.
100nsec transient response time.
Built-in current sharing between phases.
Remote sense.
Programmable Active Droop (Voltage Positioning).
Programmable switching frequency from 100KHz to 1MHz per phase.
Adaptive delay gate switching.
Integrated high-current gate drivers.
