74LCX16373

Low Voltage 16-Bit Transparent Latch

74LCX16373 Features

* s 5V tolerant inputs and outputs s 2.3V

* 3.6V VCC specifications provided s 5.4 ns tPD max (VCC 3.3V), 20 PA ICC max s Power down high impedance inputs and outputs s Supports live insertion/withdrawal (Note 1) s r24 mA output drive (VCC 3.0V) s Uses proprietary noise/EMI reduction circuitry s

74LCX16373 General Description

The LCX16373 contains sixteen non-inverting latches with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. The flip-flops appear transparent to the data when the Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data.

74LCX16373 Datasheet (159.33 KB)

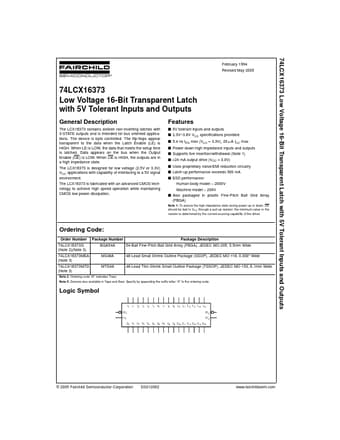

Preview of 74LCX16373 PDF

Datasheet Details

Part number:

74LCX16373

Manufacturer:

Fairchild Semiconductor

File Size:

159.33 KB

Description:

Low voltage 16-bit transparent latch.
74LCX16373 Low Voltage 16-Bit Transparent Latch with 5V Tolerant Inputs and Outputs February 1994 Revised May 2005 74LCX16373 Low Voltage 16-Bit Tra.
