74LS03 - Quad 2-Input NAND Gates

Datasheet Summary

Description

This device contains four independent gates each of which performs the logic NAND function.

The open-collector outputs require external pull-up resistors for proper logical operation.

Fairchild Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	74LS03
Manufacturer	Fairchild Semiconductor
File Size	48.04 KB
Description	Quad 2-Input NAND Gates
Datasheet	74LS03 Datasheet

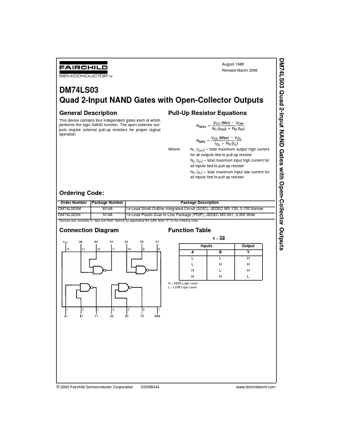

Additional preview pages of the 74LS03 datasheet.
