74LS20 Datasheet - Fairchild Semiconductor

Dual 4-Input NAND Gate

74LS20 General Description

This device contains two independent gates each of which performs the logic NAND function. Ordering Code: Order Number DM74LS20M DM74LS20N Package Number M14A N14A Package Description 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow 14-Lead Plastic Dual-In-Line Package (P.

74LS20 Datasheet (45.78 KB)

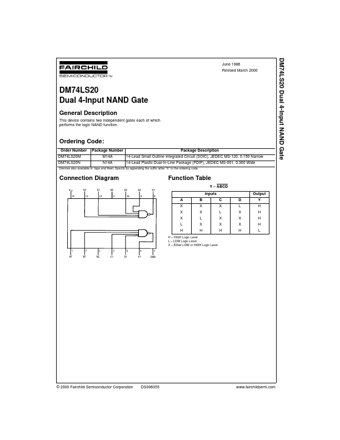

Preview of 74LS20 PDF

Datasheet Details

Part number:

74LS20

Manufacturer:

Fairchild Semiconductor

File Size:

45.78 KB

Description:

Dual 4-input nand gate.
