74LS243 - Quadruple Bus Transceiver

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

74LS243 Quadruple Bus Transceiver by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – 74LS243

Datasheet Details

Part number	74LS243
Manufacturer	Fairchild Semiconductor
File Size	52.64 KB
Description	Quadruple Bus Transceiver
Datasheet	74LS243 Datasheet

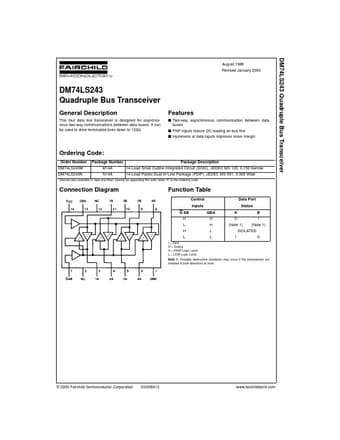

Additional preview pages of the 74LS243 datasheet.

Product details

Description

This four data line transceiver is designed for asynchronous two-way communications between data buses.

Features

s Two-way asynchronous communication between data buses s PNP inputs reduce DC loading on bus line s Hysteresis at data inputs improves noise margin Ordering Code: Order Number DM74LS243M DM74LS243N Package Number M14A N14A Package.
