74LVTH162374

Low Voltage 16-Bit D-Type Flip-Flop

74LVTH162374 Features

* s Input and output interface capability to systems at 5V VCC s Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs s Live insertion/extraction permitted s Power Up/Power Down high impedance provides glitch-free bus loading s Outputs include equivalent series r

74LVTH162374 General Description

The LVTH162374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit operation. The LVTH16237.

74LVTH162374 Datasheet (93.56 KB)

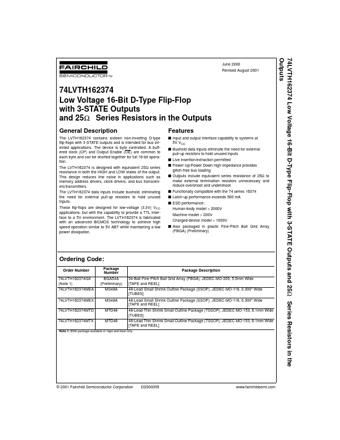

Preview of 74LVTH162374 PDF

Datasheet Details

Part number:

74LVTH162374

Manufacturer:

Fairchild Semiconductor

File Size:

93.56 KB

Description:

Low voltage 16-bit d-type flip-flop.
74LVTH162374 Low Voltage 16-Bit D-Type Flip-Flop with 3-STATE Outputs and 25Ω Series Resistors in the Outputs June 2000 Revised August 2001 74LVTH16.
