A1281Y Datasheet - Fairchild Semiconductor

A1281Y - KSA1281

KSA1281 KSA1281 Audio Power Amplifier Collector Power Dissipation : PC=1W 3 Watt Output Application www.DataSheet4U.com 1 TO-92L 1.

Emitter 2.

Collector 3.

Base PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Ratings -50 -50 -5 -2

A1281Y_FairchildSemiconductor.pdf

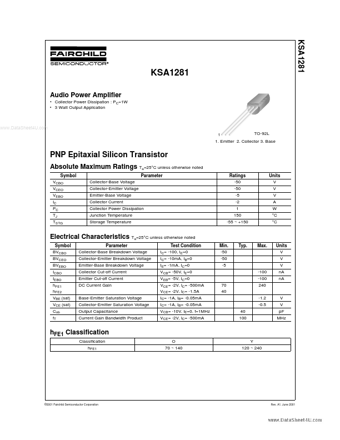

Preview of A1281Y PDF
A1281Y Datasheet Preview Page 2 A1281Y Datasheet Preview Page 3

Datasheet Details

Part number:

A1281Y

Manufacturer:

Fairchild Semiconductor

File Size:

70.62 KB

Description:

Ksa1281.
