A12 - 10 TO 1000 MHz CASCADABLE AMPLIFIER

📥 Download Datasheet

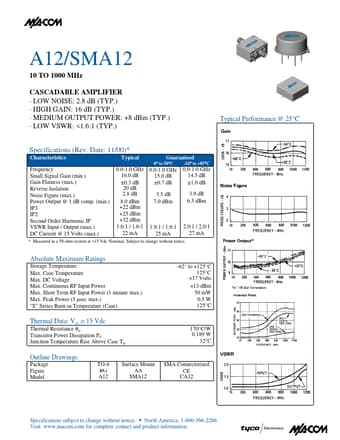

Datasheet preview – A12

Datasheet Details

Part number A12
Manufacturer Tyco Electronics
File Size 113.17 KB
Description 10 TO 1000 MHz CASCADABLE AMPLIFIER
Datasheet download datasheet A12 Datasheet
Additional preview pages of the A12 datasheet.

📁 Similar Datasheet

  • A1201 - Continuous-Time Bipolar Switch (Allegro MicroSystems)
  • A1202 - Continuous-Time Bipolar Switch (Allegro)
  • A1203 - Continuous-Time Bipolar Switch (Allegro)
  • A1203S-1W - DC-DC Power Module (K-CUT)
  • A1204 - Continuous-Time Bipolar Switch (Allegro)
  • A1205 - Continuous-Time Bipolar Switch (Allegro MicroSystems)
  • A1205D-1W - DC/DC CONVERTER (REICU)
  • A1205D-2W - DC/DC CONVERTER (REICU)
  • A1205S-1W - DC/DC CONVERTER (REICU)
  • A1205S-1W - DUAL/SINGLE OUTPUT DC-DC CONVERTER (MORNSUN)
Other Datasheets by Tyco Electronics
  • A1211 - 10 TO 1200 MHz CASCADABLE AMPLIFIER
  • A1212 - 100 TO 1200 MHz CASCADABLE AMPLIFIER

Full PDF Text Transcription

Click to expand full text
A12/SMA12 10 TO 1000 MHz CASCADABLE AMPLIFIER · LOW NOISE: 2.8 dB (TYP.) · HIGH GAIN: 16 dB (TYP.) · MEDIUM OUTPUT POWER: +8 dBm (TYP.) · LOW VSWR: <1.6:1 (TYP.) Specifications (Rev. Date: 11/00)* Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 50°C Typical Performance @ 25°C Guaranteed -54° to +85°C 0.0-1.0 GHz 16.0 dB ±0.3 dB 20 dB 2.8 dB 8.0 dBm +22 dBm +25 dBm +32 dBm 1.6:1 / 1.6:1 22 mA 0.0-1.0 GHz 15.0 dB ±0.7 dB 3.5 dB 7.0 dBm 0.0-1.0 GHz 14.5 dB ±1.0 dB 3.9 dB 6.5 dBm 1.9:1 / 1.9:1 25 mA 2.0:1 / 2.0:1 27 mA * Measured in a 50-ohm system at +15 Vdc Nominal.
