A1212 - 100 TO 1200 MHz CASCADABLE AMPLIFIER

Tyco Electronics

Datasheet Details

Part number	A1212
Manufacturer	Tyco Electronics
File Size	109.64 KB
Description	100 TO 1200 MHz CASCADABLE AMPLIFIER
Datasheet	A1212 Datasheet
Additional preview pages of the A1212 datasheet.

📁 Similar Datasheet

A1212 - Cascadable Amplifier (MA-COM)
A1212 - Continuous-Time Latch (Allegro)
A1212D-1W - DC/DC CONVERTER (REICU)
A1212D-2W - DC/DC CONVERTER (REICU)
A1212S-1W - DC/DC CONVERTER (REICU)
A1212S-1W - DUAL/SINGLE OUTPUT DC-DC CONVERTER (MORNSUN)
A1212S-1W - DC-DC Power Module (K-CUT)
A1212S-2W - DC/DC CONVERTER (REICU)
A1212S-2W - DUAL/SINGLE OUTPUT DC-DC CONVERTER (MORNSUN)
A1212S-2WR2 - DC/DC Converter (MORNSUN)

Other Datasheets by Tyco Electronics

A1211 - 10 TO 1200 MHz CASCADABLE AMPLIFIER
A12 - 10 TO 1000 MHz CASCADABLE AMPLIFIER

Full PDF Text Transcription

Click to expand full text

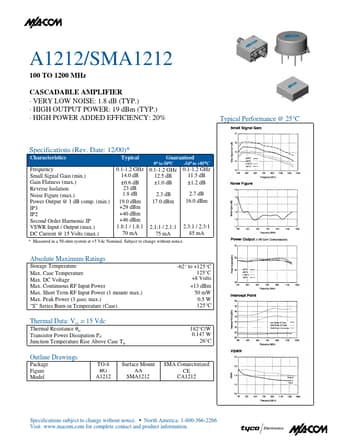

A1212/SMA1212 100 TO 1200 MHz CASCADABLE AMPLIFIER · VERY LOW NOISE: 1.8 dB (TYP.) · HIGH OUTPUT POWER: 19 dBm (TYP.) · HIGH POWER ADDED EFFICIENCY: 20% Typical Performance @ 25°C Specifications (Rev. Date: 12/00)* Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 50°C Guaranteed -54° to +85°C 0.1-1.2 GHz 14.0 dB ±0.6 dB 23 dB 1.8 dB 19.0 dBm +29 dBm +40 dBm +46 dBm 1.8:1 / 1.8:1 70 mA 0.1-1.2 GHz 12.5 dB ±1.0 dB 2.3 dB 17.0 dBm 0.1-1.2 GHz 11.5 dB ±1.2 dB 2.7 dB 16.0 dBm 2.1:1 / 2.1:1 75 mA 2.3:1 / 2.3:1 85 mA * Measured in a 50-ohm system at +5 Vdc Nominal.

Published: Mar 23, 2005 |
