BC328, BC32725 Datasheet - Fairchild Semiconductor

BC32725_FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: BC328, BC32725. Please refer to the document for exact specifications by model.

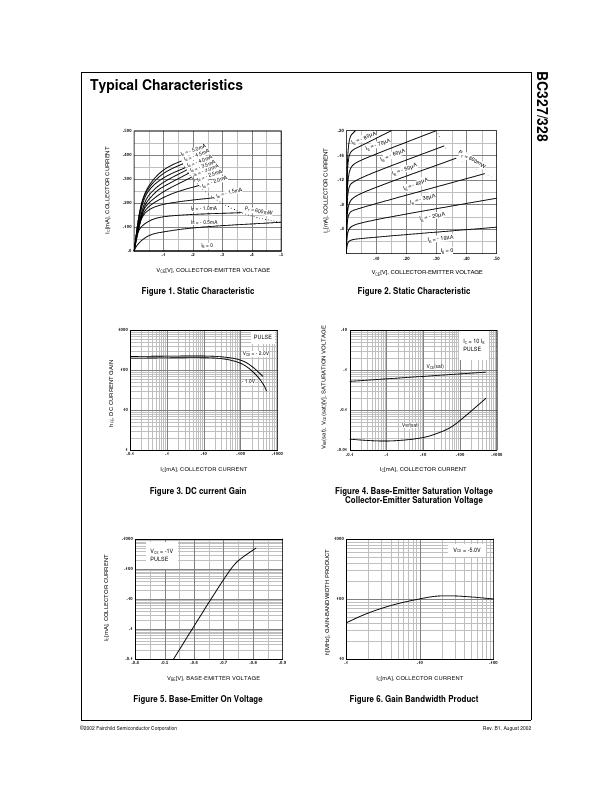

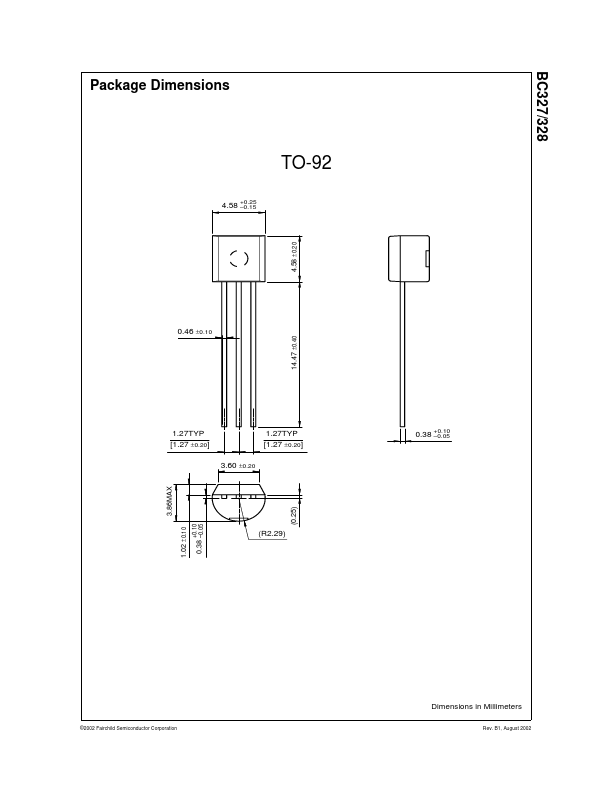

BC328 Datasheet Preview Page 2 BC328 Datasheet Preview Page 3

Datasheet Details

Part number:

BC328, BC32725

Manufacturer:

Fairchild Semiconductor

File Size:

49.50 KB

Description:

Pnp epitaxial silicon transistor.

Note:

This datasheet PDF includes multiple part numbers: BC328, BC32725.
Please refer to the document for exact specifications by model.

BC328, BC32725, PNP EPITAXIAL SILICON TRANSISTOR

BC327/328 BC327/328 Switching and Amplifier Applications Suitable for AF-Driver stages and low power output stages Complement to BC337/BC338 TO-92 1 1.

Collector 2.

Base 3.

Emitter PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCES Parameter Collector-Emitter Voltage : BC327 : BC328 Collector-Emitter Voltage : BC327 : BC328 Emitter-Base Voltage Collector Current (DC) Collector Power Dissipation Junction Temperature Storage
