BCW66G NPN General Purpose Amplifier

BCW66G Description

BCW66G BCW66G NPN General Purpose Amplifier * This device is designed for general purpose amplifier applications at collector currents to 500.

BCW66G Applications

* at collector currents to 500mA.
* Sourced from process 13. 3 2 1 SOT-23 Mark: EG 1. Base 2. Emitter 3. Collector Absolute Maximum Ratings
* TC=25°C unless otherwise noted Symbol VCEO VCBO VEBO IC TJ, TSTG Parameter Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage

📥 Download Datasheet

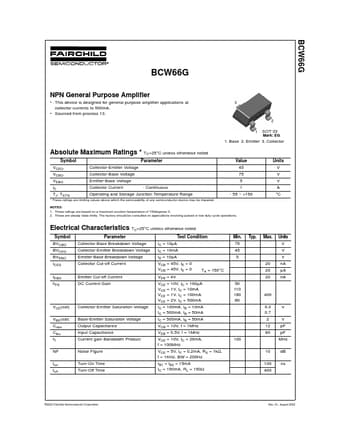

Preview of BCW66G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCW66G
Manufacturer
Fairchild Semiconductor
File Size
46.65 KB
Datasheet
BCW66G_FairchildSemiconductor.pdf
Description
NPN General Purpose Amplifier
