BCW60C, BCW60A Datasheet - Fairchild Semiconductor

BCW60C Transistor

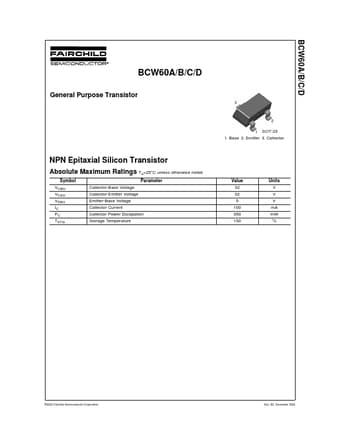

BCW60A/B/C/D BCW60A/B/C/D General Purpose Transistor NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter VCBO VCEO VEBO IC PC TSTG Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Storage Temperature 3 2 1 SOT-23 1. Base 2. Emitter 3. Collector Value 32 32 5 100 350 150 Units V V V mA mW °C ©2002 Fairchild Semiconductor Corporation Rev. B2, December 2002 BCW60A/B/.

BCW60A-FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: BCW60C, BCW60A. Please refer to the document for exact specifications by model.
BCW60C Datasheet Preview Page 2 BCW60C Datasheet Preview Page 3

Datasheet Details

Part number:

BCW60C, BCW60A

Manufacturer:

Fairchild Semiconductor

File Size:

101.27 KB

Description:

Transistor.

Note:

This datasheet PDF includes multiple part numbers: BCW60C, BCW60A.
Please refer to the document for exact specifications by model.
