BCX70J Datasheet - Fairchild Semiconductor

BCX70J NPN EPITAXIAL SILICON TRANSISTOR

BCX70J GENERAL PURPOSE TRANSISTOR NPN EPITAXIAL SILICON TRANSISTOR SOT-23 ABSOLUTE MAXIMUM RATINGS (TA=25° C) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation Storage Temperature Refer to KS3904 for graphs Symbol VCBO VCEO VEBO IC PC T STG Rating 45 45 5 200 350 150 Unit V V V mA mW °C 1. Base 2. Emitter 3. Collector ELECTRICAL CHARACTERISTICS (TA=25° C) Characteristic Collector-Emitter Breakdown Voltage E.

BCX70J_FairchildSemiconductor.pdf

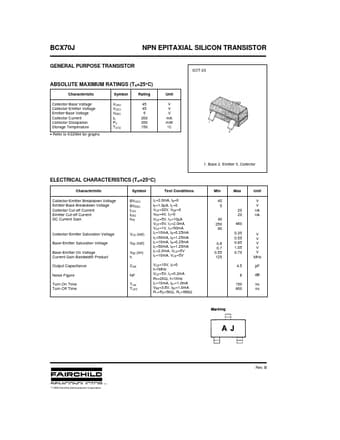

Preview of BCX70J PDF
BCX70J Datasheet Preview Page 2

Datasheet Details

Part number:

BCX70J

Manufacturer:

Fairchild Semiconductor

File Size:

31.23 KB

Description:

Npn epitaxial silicon transistor.
