BD239 - NPN Transistor

📥 Download Datasheet

Datasheet preview – BD239

Datasheet Details

Part number BD239
Manufacturer Fairchild Semiconductor
File Size 27.75 KB
Description NPN Transistor
Datasheet download datasheet BD239 Datasheet
Additional preview pages of the BD239 datasheet.

📁 Similar Datasheet

  • BD239 - NPN PLASTIC POWER TRANSISTOR (CDIL)
  • BD239 - NPN SILICON POWER TRANSISTORS (Bourns)
  • BD239 - SILICON POWER TRANSISTOR (SavantIC)
  • BD239 - Medium Power Linear/Switching (Comset Semiconductors)
  • BD239 - NPN Transistor (INCHANGE)
  • BD239A - NPN Transistor (INCHANGE)
  • BD239A - NPN PLASTIC POWER TRANSISTOR (CDIL)
  • BD239A - NPN SILICON POWER TRANSISTORS (Bourns)
  • BD239A - SILICON POWER TRANSISTOR (SavantIC)
  • BD239A - Medium Power Linear/Switching (Comset Semiconductors)
Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

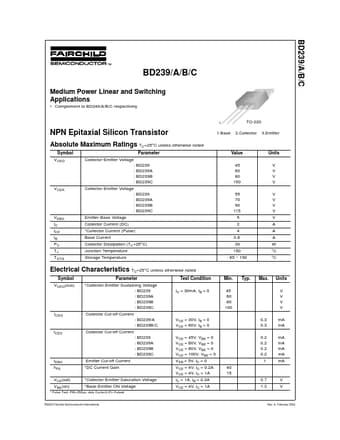

BD239/A/B/C BD239/A/B/C Medium Power Linear and Switching Applications • Complement to BD240/A/B/C respectively 1 TO-220 2.Collector 3.Emitter NPN Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCEO Parameter Collector-Emitter Voltage : BD239 : BD239A : BD239B : BD239C Collector-Emitter Voltage : BD239 : BD239A : BD239B : BD239C Emitter-Base Voltage Collector Current (DC) *Collector Current (Pulse) Base Current Collector Dissipation (TC=25°C) Junction Temperature Storage Temperature 1.Base Value 45 60 80 100 55 70 90 115 5 2 4 0.
