BD239C Datasheet - STMicroelectronics

BD239C NPN power transistor

The device is manufactured in Planar technology with “Base Island” layout. The resulting transistor shows exceptional high gain performance coupled with very low saturation voltage. The PNP type is the BD240C. TO-220 3 2 1 Figure 1. Internal schematic diagram Table 1. Device summary Order code B.

BD239C_STMicroelectronics.pdf

Preview of BD239C PDF

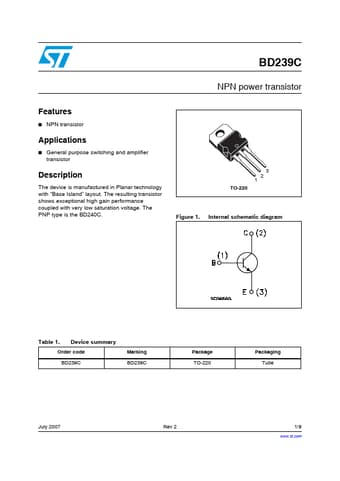

BD239C Datasheet Preview Page 2 BD239C Datasheet Preview Page 3

Datasheet Details

Part number:

BD239C

Manufacturer:

STMicroelectronics ↗

File Size:

234.49 KB

Description:

Npn power transistor.
