BDX54A - PNP Epitaxial Silicon Transistor

📥 Download Datasheet

Datasheet preview – BDX54A

Datasheet Details

Part number BDX54A
Manufacturer Fairchild Semiconductor
File Size 42.00 KB
Description PNP Epitaxial Silicon Transistor
Datasheet download datasheet BDX54A Datasheet
Additional preview pages of the BDX54A datasheet.

📁 Similar Datasheet

  • BDX54A - NPN Transistor (TRANSYS)
  • BDX54A - PNP Transistor (INCHANGE)
  • BDX54A - Silicon PNP Power Transistors (SavantIC)
  • BDX54A - SILICON POWER DARLINGTON TRANSISTORS (Comset Semiconductors)
  • BDX54 - PNP SILICON POWER DARLINGTONS (Bourns Electronic Solutions)
  • BDX54 - NPN Transistor (TRANSYS)
  • BDX54 - PNP Transistor (INCHANGE)
  • BDX54 - Silicon PNP Power Transistors (SavantIC)
  • BDX54 - SILICON POWER DARLINGTON TRANSISTORS (Comset Semiconductors)
  • BDX54B - PNP Transistor (Central Semiconductor)
Other Datasheets by Fairchild Semiconductor
  • BDX54 - PNP Epitaxial Silicon Transistor
  • BDX54B - PNP Epitaxial Silicon Transistor
  • BDX54C - PNP Epitaxial Silicon Transistor
  • BDX53 - NPN Epitaxial Silicon Transistor
  • BDX53A - NPN Epitaxial Silicon Transistor
  • BDX53B - NPN Epitaxial Silicon Transistor
  • BDX53C - NPN Epitaxial Silicon Transistor
  • BDX33 - NPN Epitaxial Silicon Transistor

Full PDF Text Transcription

Click to expand full text

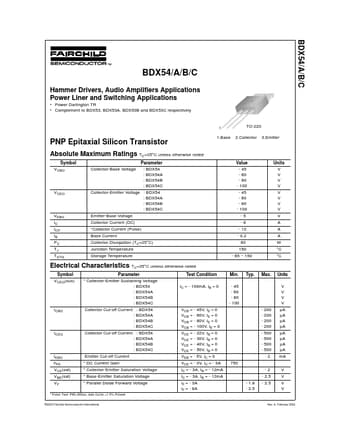

BDX54/A/B/C BDX54/A/B/C Hammer Drivers, Audio Amplifiers Applications Power Liner and Switching Applications • Power Darlington TR • Complement to BDX53, BDX53A, BDX53B and BDX53C respectively 1 TO-220 2.Collector 3.Emitter PNP Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO Collector-Base Voltage Parameter : BDX54 : BDX54A : BDX54B : BDX54C 1.Base Value - 45 - 60 - 80 - 100 - 45 - 60 - 80 - 100 -5 -8 - 12 - 0.
