CD4515BC

4-Bit Latched/4-to-16 Line Decoders

CD4515BC Features

* s Wide supply voltage range: 3.0V to 15V s High noise immunity: 0.45 VDD (typ.) s Low power TTL: fan out of 2 compatibility: driving 74L s Low quiescent power dissipation: 0.025 µW/package @ 5.0 VDC s Single supply operation s Input impedance = 1012Ω typically s Plug-in replacement for MC14514, MC14

CD4515BC General Description

The CD4514BC and CD4515BC are 4-to-16 line decoders with latched inputs implemented with complementary MOS (CMOS) circuits constructed with N- and P-channel enhancement mode transistors. These circuits are primarily used in decoding applications where low power dissipation and/or high noise immunity.

CD4515BC Datasheet (231.62 KB)

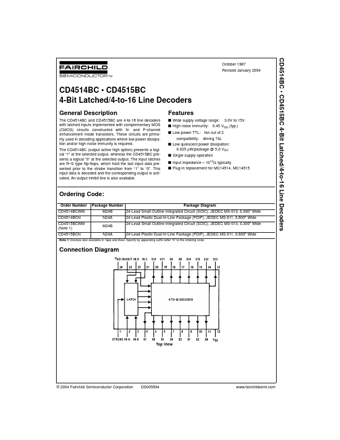

Preview of CD4515BC PDF

Datasheet Details

Part number:

CD4515BC

Manufacturer:

Fairchild Semiconductor

File Size:

231.62 KB

Description:

4-bit latched/4-to-16 line decoders.
CD4514BC

* CD4515BC 4-Bit Latched/4-to-16 Line Decoders October 1987 Revised January 2004 CD4514BC

* CD4515BC 4-Bit Latched/4-to-16 .
