CD4007CN

Dual Complementary Pair Plus Inverter

CD4007CN Features

* s Wide supply voltage range: 3.0V to 15V s High noise immunity: 0.45 VCC (typ.) Ordering Code: Order Number Package Number Package Description CD4007CM M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow CD4007CN N14A 14-Lead Plastic Dual-In-Line Package (PDIP)

CD4007CN General Description

The CD4007C consists of three complementary pairs of Nand P-channel enhancement mode MOS transistors suitable for series/shunt applications. All inputs are protected from static discharge by diode clamps to VDD and VSS. For proper operation the voltages at all pins must be constrained to be between.

CD4007CN Datasheet (48.01 KB)

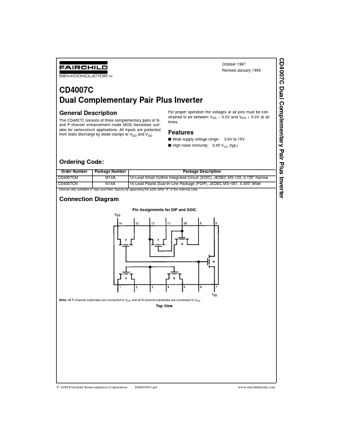

Preview of CD4007CN PDF

Datasheet Details

Part number:

CD4007CN

Manufacturer:

Fairchild Semiconductor

File Size:

48.01 KB

Description:

Dual complementary pair plus inverter.
