CD4022BC

Divide-by-8 Counter/Divider

CD4022BC General Description

The CD4017BC is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry out bit. The CD4022BC is a 4-stage divide-by-8 Johnson counter with 8 decoded outputs and a carry-out bit. These counters are cleared to their zero count by a logical “1” on their reset line. These counters ar.

CD4022BC Datasheet (77.38 KB)

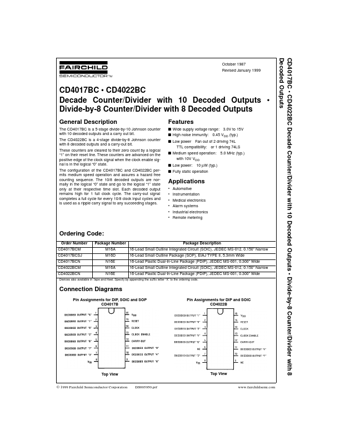

Preview of CD4022BC PDF

Datasheet Details

Part number:

CD4022BC

Manufacturer:

Fairchild Semiconductor

File Size:

77.38 KB

Description:

Divide-by-8 counter/divider.
CD4017BC

* CD4022BC Decade Counter/Divider with 10 Decoded Outputs

* Divide-by-8 Counter/Divider with 8 Decoded Outputs October 1987 .
