CD4022BC - Divide-by-8 Counter/Divider

Product Overview

National Semiconductor

Datasheet Details

Part number	CD4022BC
Manufacturer	National Semiconductor
File Size	165.76 KB
Description	Divide-by-8 Counter/Divider
Datasheet	CD4022BC Datasheet

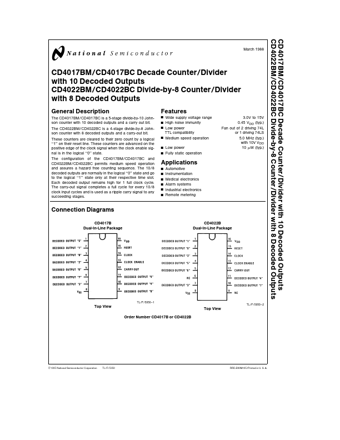

Additional preview pages of the CD4022BC datasheet.

Product details

Description

The CD4017BM CD4017BC is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry out bit The CD4022BM CD4022BC is a 4-stage divide-by-8 Johnson counter with 8 decoded outputs and a carry-out bit These counters are cleared to their zero count by a logical ‘‘1’’ on their reset line These counters are advanced on the positive edge of the clock signal when the clock enable signal is in the logical ‘‘0’’ state The configuration of the CD4017BM CD4017BC and CD4022BM CD4022BC permits

Features

Y Y Y Y Wide supply voltage range High noise immunity Low power TTL compatibility Medium speed operation Low power Fully static operation Y Y 3 0V to 15V 0 45 VDD (typ ) Fan out of 2 driving 74L or 1 driving 74LS 5 0 MHz (typ ) with 10V VDD 10 mW (typ ).
