CD4020BC Datasheet, counters equivalent, National Semiconductor

CD4020BC Features

  • Counters Y Y Y Y Y Wide supply voltage range High noise immunity Low power TTL compatibility Medium speed operation Schmitt trigger clock input 1 0V to 15V 0 45 VDD (typ ) Fan out of 2 drivin

PDF File Details

Part number:

CD4020BC

Manufacturer:

National Semiconductor

File Size:

136.28kb

Download:

📄 Datasheet

Description:

14-stage/ 12-stage ripple carry binary counters. The CD4020BM CD4020BC CD4060BM CD4060BC are 14-stage ripple carry binary counters and the CD4040BM CD4040BC is a 12-stage ripple carr

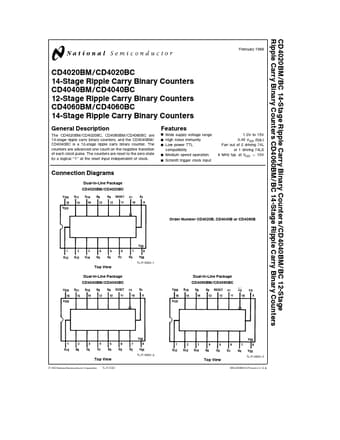

Datasheet Preview: CD4020BC 📥 Download PDF (136.28kb)
