DF08M

The DF08M is Bridge Rectifiers designed by Fairchild Semiconductor.

Product Overview

Fairchild Semiconductor

Part number	DF08M, DF005M
Manufacturer	Fairchild Semiconductor
File Size	159.67 KB
Description	Bridge Rectifiers
Datasheet	DF005M-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: DF08M, DF005M. Please refer to the document for exact specifications by model.

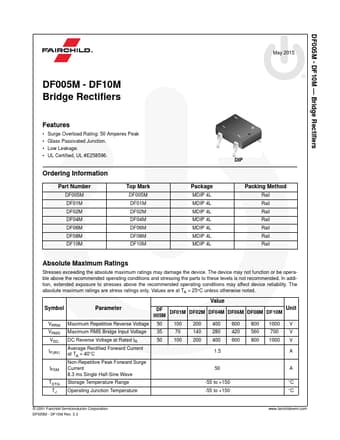

Additional preview pages of the DF08M datasheet.

Surge Overload Rating: 50 Amperes Peak.
Glass Passivated Junction.
Low Leakage.
UL Certified, UL #E258596. Ordering Information Part Number DF005M DF01M DF02M DF04M DF06M DF08M DF10M Top Mark DF005M DF01M DF02M DF04M DF06M DF08M DF10M DIP Package MDIP 4L MDIP 4L MDIP 4L MDIP 4L MDIP 4L MDIP 4L MDIP 4L Packing Method Rail Rail Rail Rail Rail Rail Rail Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The d.
