DF01M, DF005M Bridge Rectifiers

DF01M Description

DF005M - DF10M * Bridge Rectifiers May 2015 DF005M - DF10M Bridge Rectifiers .

DF01M Features

* Surge Overload Rating: 50 Amperes Peak
* Glass Passivated Junction.
* Low Leakage.
* UL Certified, UL #E258596. Ordering Information Part Number DF005M DF01M DF02M DF04M DF06M DF08M DF10M Top Mark DF005M DF01M DF02M DF04M DF06M DF08M DF10M DIP Package MDIP 4L MD

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF01M, DF005M. Please refer to the document for exact specifications by model.

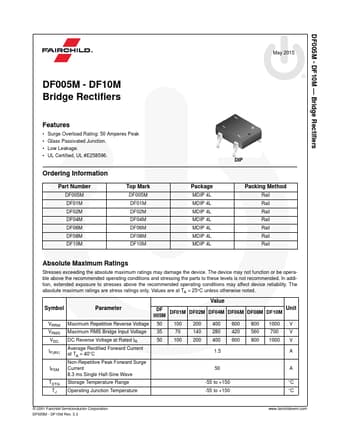

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DF01M, DF005M
Manufacturer
Fairchild Semiconductor
File Size
159.67 KB
Datasheet
DF005M-FairchildSemiconductor.pdf
Description
Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: DF01M, DF005M.
Please refer to the document for exact specifications by model.
