DF01, DF005-GOOD Miniature Glass Passivated Single-Phase Bridge Rectifier

DF01 Description

.

DF01 Features

* Ideal for printed circuit boards Applicable for automative insertion High surge current capability Solder Dip 260 40seconds DF005 thru DF10 Miniature Glass Passivated Single-Phase Bridge Rectifier Reverse Voltage 50 and 1000V Forward Current 1.0A Mechanical Data Case:DF Epoxy meets UL-94V-0 Flamma

DF01 Applications

* General purpose use in ac-to-dc bridge full wave rectification for SMPS, Lighting Ballaster, Adapter, Battery Charger, Home Appliances, Office Equipment, and Telecommunication applications. Maximum Ratings & Electrical Characteristics Ratings at 25 ambient temperature unless otherwise specified. P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF01, DF005-GOOD. Please refer to the document for exact specifications by model.

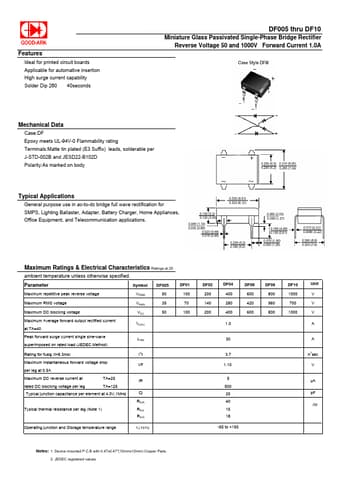

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DF01, DF005-GOOD
Manufacturer
GOOD-ARK
File Size
163.86 KB
Datasheet
DF005-GOOD-ARK.pdf
Description
Miniature Glass Passivated Single-Phase Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: DF01, DF005-GOOD.
Please refer to the document for exact specifications by model.
