DF011 Datasheet - AMI

DF011 - CMOS Gate Array

DF011 is a static, master-slave D flip-flop.

RESET is asynchronous and active low.

Output is unbuffered and changes state on the rising edge of the clock.

Logic Symbol Truth Table Pin Loading DF011 DQ C R RN D C Q LXXL HL ↑L HH ↑H H X L NC NC = No Change Equivalent Load D 1.0 C 1.0 RN 1.0 Equ

DF011-AMI.pdf

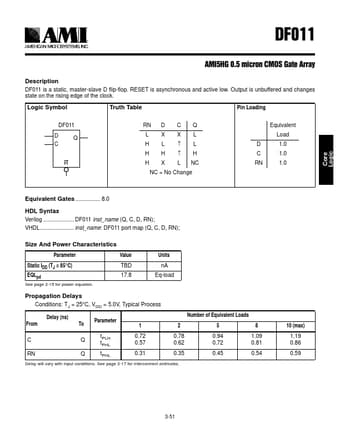

Preview of DF011 PDF
DF011 Datasheet Preview Page 2

Datasheet Details

Part number:

DF011

Manufacturer:

AMI

File Size:

31.77 KB

Description:

Cmos gate array.
