DF08S

The DF08S is Bridge Rectifiers designed by Fairchild Semiconductor.

Product Overview

📥 Download Datasheet

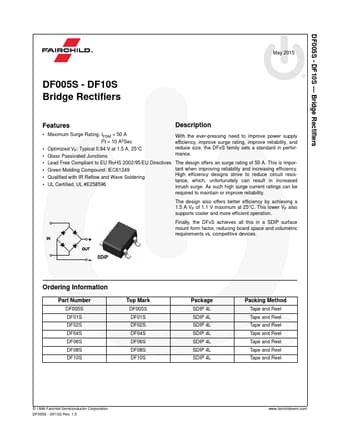

Datasheet preview – DF08S

Datasheet Details

Part number DF08S, DF005S
Manufacturer Fairchild Semiconductor
File Size 198.62 KB
Description Bridge Rectifiers
Datasheet download datasheet DF005S-FairchildSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: DF08S, DF005S.
Please refer to the document for exact specifications by model.
Additional preview pages of the DF08S datasheet.

Product details

Description

Maximum Surge Rating: IFSM = 50 A I2t = 10 A2Sec With the ever-pressing need to improve power supply efficiency, improve surge rating, improve reliability, and Optimized VF: Typical 0.94 V at 1.5 A, 25°C Glass Passivated Junctions reduce size, the DFxS family sets a standard in performance. Lead Free Compliant to EU RoHS 2002/95/EU Directives The design offers an surge rating of 50 A. Green Molding Compound: IEC61249
