Part number: DM74121N
Manufacturer: Fairchild Semiconductor
File Size: 69.03KB
Download: 📄 Datasheet
Description: Monostable multivibrator
s Triggered from active-HIGH transition or active-LOW transition inputs
s Variable pulse width from 30 ns to 28 seconds s Jitter free Schmitt-trigger input s Excellent no.
The DM74121 is a monostable multivibrator featuring both positive and negative edge triggering with complementary outputs. An internal 2kΩ timing resistor is provided for design convenience minimizing component count and layout problems. this device .
Image gallery
TAGS
📁 Related Datasheet
DM74121 - Monostable multivibrator
(Fairchild Semiconductor)

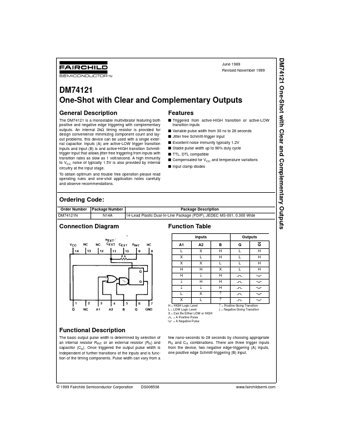

DM74121 One-Shot with Clear and Complementary Outputs
