DM74ALS1240A

Octal 3-STATE Bus Driver

DM74ALS1240A Features

* s Advanced oxide-isolated, ion-implanted Schottky TTL process s Switching response specified into 500Ω and 50 pF load s Switching response specifications guaranteed over full temperature and VCC supply range s PNP input design reduces input loading s Low power dissipation version s Low level drive c

DM74ALS1240A General Description

These octal 3-STATE bus drivers are designed to provide the designer with flexibility in implementing a bus interface with memory, microprocessor, or communication systems, and are low power dissipation versions of the DM74ALS240A and DM74ALS241A. The output 3-STATE gating control is organized into .

DM74ALS1240A Datasheet (39.97 KB)

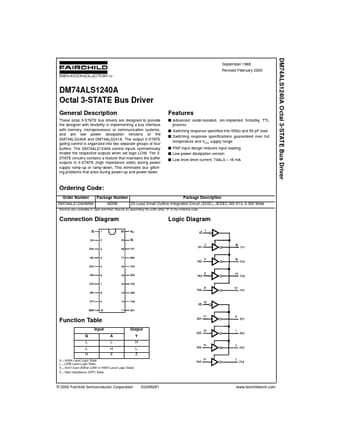

Preview of DM74ALS1240A PDF

Datasheet Details

Part number:

DM74ALS1240A

Manufacturer:

Fairchild Semiconductor

File Size:

39.97 KB

Description:

Octal 3-state bus driver.
