DM74ALS125 Datasheet, Buffer, Fairchild Semiconductor

DM74ALS125 Features

  • Buffer s Advanced low power Schottky TTL process oxide-isolated ion-implanted s Functional and pin compatible with the 74LS counterpart s Switching response specified into 500Ω and 50 pF load

PDF File Details

Part number:

DM74ALS125

Manufacturer:

Fairchild Semiconductor

File Size:

51.55kb

Download:

📄 Datasheet

Description:

Quad 3-state buffer. This device contains four independent gates each of which performs a non-inverting buffer function. The outputs have the 3-STATE feat

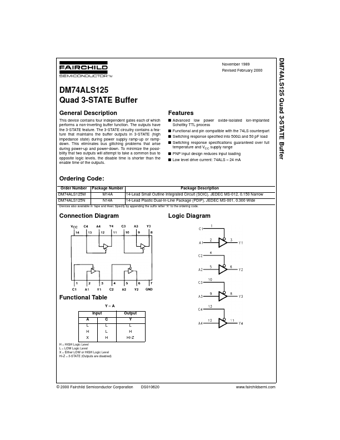

Datasheet Preview: DM74ALS125 📥 Download PDF (51.55kb)
