DM74ALS253

3-STATE Dual 1-of-4 Line Data Selector/Multiplexer

DM74ALS253 Features

* to ensure that select input changes do not cause invalid output transients. Features s Advanced oxide-isolated, ion-implanted Schottky TTL process s Switching performance is guaranteed over full temperature and VCC supply range s Pin and functional compatible with LS family counterpart s Improved o

DM74ALS253 General Description

This Data Selector/Multiplexer contains full on-chip decoding to select one-of-four data sources as a result of a unique two-bit binary code at the Select Inputs. Each of the two Data Selector/Multiplexer circuits have their own separate Data and Output Control inputs and a non-inverting 3STATE outp.

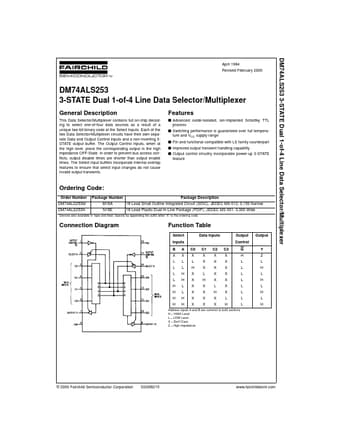

DM74ALS253 Datasheet (54.24 KB)

Preview of DM74ALS253 PDF

Datasheet Details

Part number:

DM74ALS253

Manufacturer:

Fairchild Semiconductor

File Size:

54.24 KB

Description:

3-state dual 1-of-4 line data selector/multiplexer.
DM74ALS253 3-STATE Dual 1-of-4 Line Data Selector/Multiplexer April 1984 Revised February 2000 DM74ALS253 3-STATE Dual 1-of-4 Line Data Selector/Mul.
