DM74ALS240A

Octal 3-STATE Bus Driver

Fairchild Semiconductor

DM74ALS240A Features

* s Advanced low power Schottky TTL process oxide-isolated ion-implanted s Functional and pin compatible with the DM74LS counterpart s Improved switching performance with less power dissipation compared with the DM74LS counterpart s Switching response specified into 500Ω and 50 pF load s Switching res

DM74ALS240A General Description

These octal 3-STATE bus drivers are designed to provide the designer with flexibility in implementing a bus interface with memory, microprocessor, or communication systems. The output 3-STATE gating control is organized into two separate groups of four buffers. The DM74ALS240A control inputs symmetr.

DM74ALS240A Datasheet (78.83 KB)

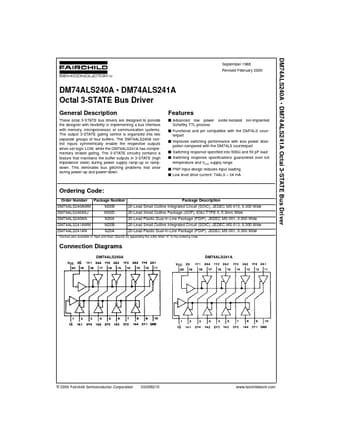

DM74ALS240A Datasheet Preview — Preview of DM74ALS240A PDF

Datasheet Details

Part number:

DM74ALS240A

Manufacturer:

Fairchild Semiconductor

File Size:

78.83 KB

Description:

Octal 3-state bus driver.
DM74ALS240A

* DM74ALS241A Octal 3-STATE Bus Driver September 1986 Revised February 2000 DM74ALS240A

* DM74ALS241A Octal 3-STATE Bus .
