DM74ALS241A - Octal 3-STATE Bus Driver

Fairchild Semiconductor

The DM74ALS241A by Fairchild Semiconductor is a Octal 3-STATE Bus Driver. Below is the official datasheet preview.

📥 Download Datasheet

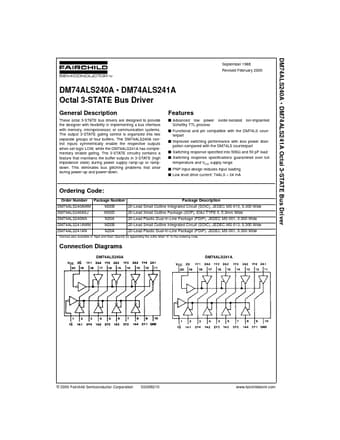

DM74ALS241A Octal 3-STATE Bus Driver by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **DM74ALS241A** Octal 3-STATE Bus Driver datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	DM74ALS241A
Manufacturer	Fairchild Semiconductor
File Size	78.83 KB
Description	Octal 3-STATE Bus Driver
Datasheet	DM74ALS241A_FairchildSemiconductor.pdf
Additional preview pages of the DM74ALS241A datasheet.

DM74ALS241A Product details

Description

These octal 3-STATE bus drivers are designed to provide the designer with flexibility in implementing a bus interface with memory, microprocessor, or communication systems.

Features

s Advanced low power Schottky TTL process oxide-isolated ion-implanted s Functional and pin compatible with the DM74LS counterpart s Improved switching performance with less power dissipation compared with the DM74LS counterpart s Switching response specified into 500Ω and 50 pF load s Switching response specifications guaranteed over full temperature and VCC supply range s PNP input design reduces input loading s Low level drive current: 74ALS = 24 mA Ordering Code: Order Number DM74ALS240AWM.
