DM74ALS245A

Octal 3-STATE Bus Transceiver

DM74ALS245A Features

* s Advanced oxide-isolated, ion-implanted Schottky TTL process s Non-inverting logic output s Glitch free bus during power up and down s 3-STATE outputs independently controlled on A and B buses s Low output impedance to drive terminated transmission lines to 133Ω s Switching response specified into

DM74ALS245A General Description

This advanced low power Schottky device contains 8 pairs of 3-STATE logic elements configured as octal bus transceivers. These circuits are designed for use in memory, microprocessor systems and in asynchronous bidirectional data buses. Two way communication between buses is controlled by the (DIR) .

DM74ALS245A Datasheet (73.04 KB)

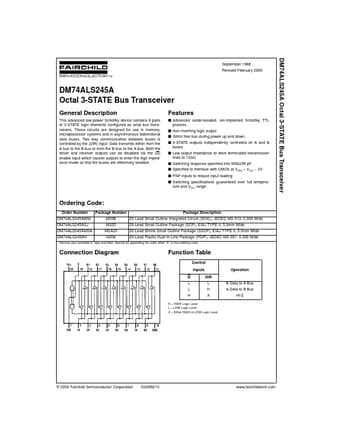

Preview of DM74ALS245A PDF

Datasheet Details

Part number:

DM74ALS245A

Manufacturer:

Fairchild Semiconductor

File Size:

73.04 KB

Description:

Octal 3-state bus transceiver.
