DM74ALS244A

Octal 3-STATE Bus Driver

DM74ALS244A Features

* s Advanced low power Schottky TTL process oxide-isolated ion-implanted s Functional and pin compatible with the 74LS counterpart s Improved switching performance with less power dissipation compared with the 74LS counterpart s Switching response specified into 500Ω and 50 pF load s Switching respons

DM74ALS244A General Description

This octal 3-STATE bus driver is designed to provide the designer with flexibility in implementing a bus interface with memory, microprocessor, or communication systems. This device offers 64-extended temperature Grade product guaranteeing performance from

*40°C to +85°C. The output 3-STATE .

DM74ALS244A Datasheet (73.25 KB)

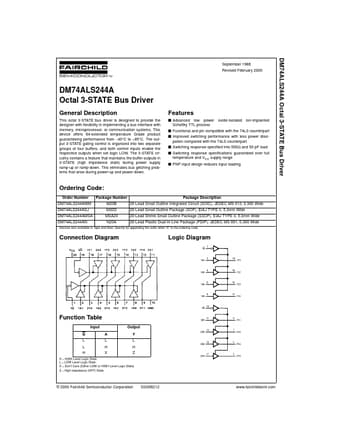

Preview of DM74ALS244A PDF

Datasheet Details

Part number:

DM74ALS244A

Manufacturer:

Fairchild Semiconductor

File Size:

73.25 KB

Description:

Octal 3-state bus driver.
