DM74ALS574A Octal D-Type Edge-Triggered Flip-Flop with 3-STATE Outputs

DM74ALS574A Description

DM74ALS574A Octal D-Type Edge-Triggered Flip-Flop with 3-STATE Outputs September 1986 Revised February 2000 DM74ALS574A Octal D-Type Edge-Triggered .
These 8-bit registers feature totem-pole 3-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads.

DM74ALS574A Features

* s Switching specifications at 50 pF s Switching specifications guaranteed over full temperature and VCC range s Advanced oxide-isolated, ion-implanted Schottky TTL process s Functionally equivalent with DM74LS374 s Improved AC performance over DM74LS374 at approximately half the power s 3-STATE buff

📥 Download Datasheet

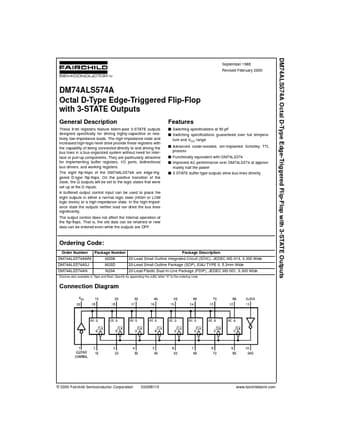

Preview of DM74ALS574A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DM74ALS574A
Manufacturer
Fairchild Semiconductor
File Size
72.02 KB
Datasheet
DM74ALS574A_FairchildSemiconductor.pdf
Description
Octal D-Type Edge-Triggered Flip-Flop with 3-STATE Outputs
