DM74AS74

Dual D-Type Positive-Edge-Triggered Flip-Flop with Preset and Clear

DM74AS74 Features

* s Switching specifications at 50 pF s Switching specifications guaranteed over full temperature and VCC range s Advanced oxide-isolated, ion-implanted Schottky TTL process s Functionally and pin-for-pin compatible with Schottky and LS TTL counterpart s Improved AC performance over S74 at approximate

DM74AS74 General Description

The AS74 is a dual edge-triggered flip-flops. Each flip-flop has individual D, clock, clear and preset inputs, and also complementary Q and Q outputs. Information at input D is transferred to the Q output on the positive going edge of the clock pulse. Clock triggering occurs at a voltage level of th.

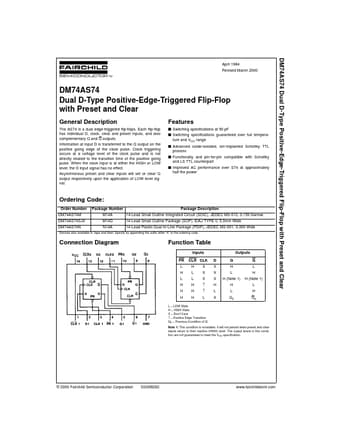

DM74AS74 Datasheet (69.14 KB)

Preview of DM74AS74 PDF

Datasheet Details

Part number:

DM74AS74

Manufacturer:

Fairchild Semiconductor

File Size:

69.14 KB

Description:

Dual d-type positive-edge-triggered flip-flop with preset and clear.
DM74AS74 Dual D-Type Positive-Edge-Triggered Flip-Flop with Preset and Clear April 1984 Revised March 2000 DM74AS74 Dual D-Type Positive-Edge-Trigge.
